Why it works

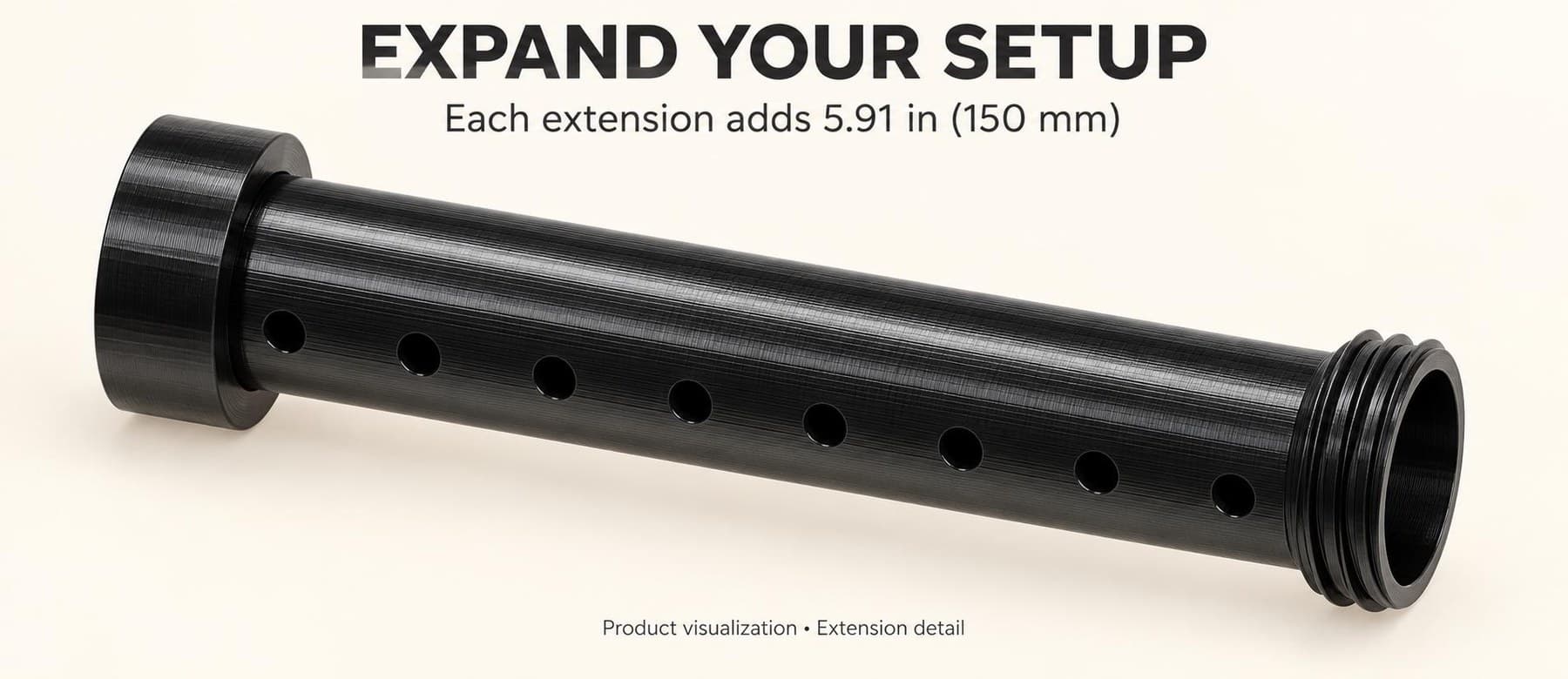

- Adds 5.91 in of reachOne extension adds 150 mm of assembled length on either side of the inlet.

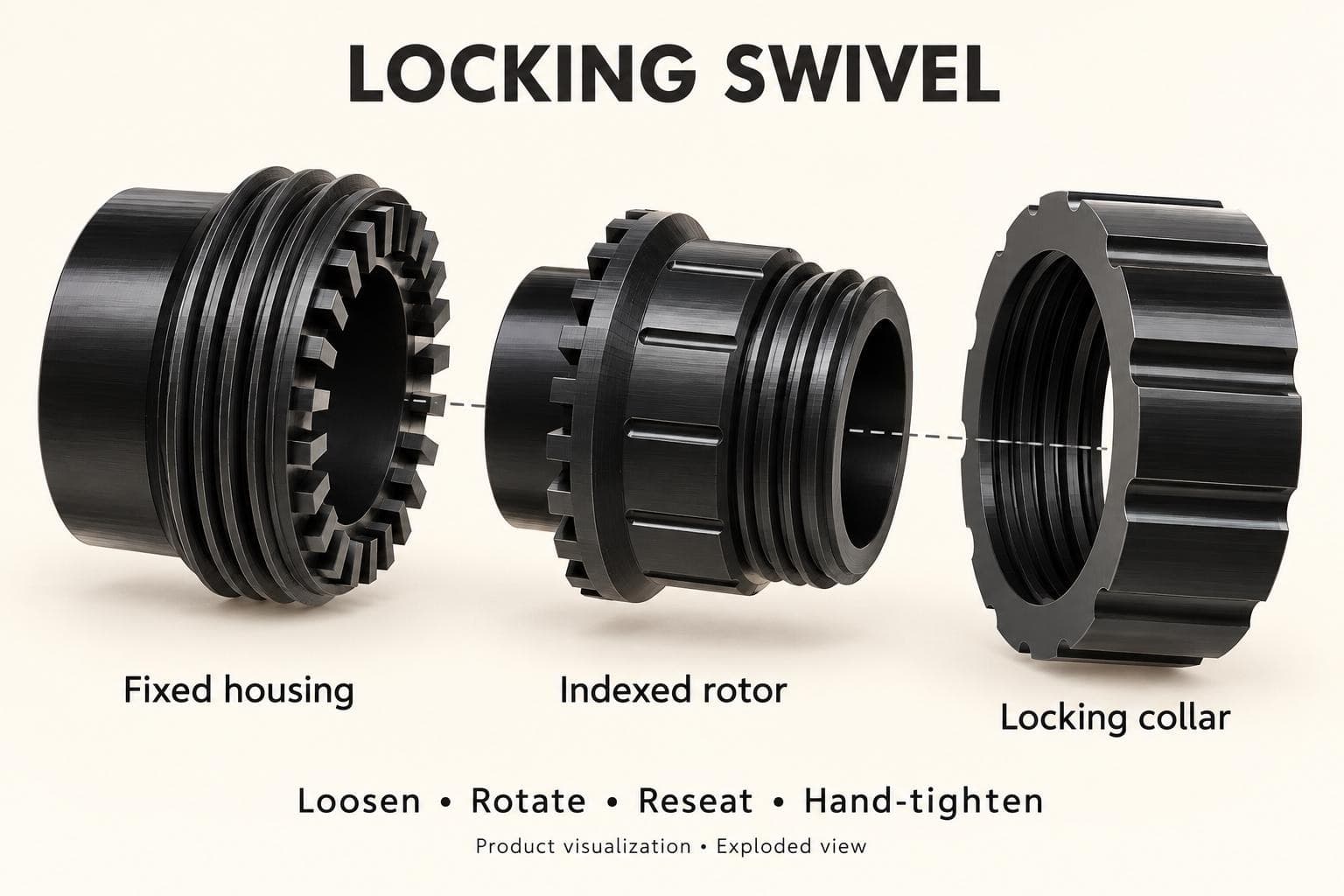

- Complete locking swivelFixed housing, indexed rotor and locking collar, ready to fit.
- Rotates 360°, locks every 15°Loosen the collar, turn, reseat the indexing teeth and hand-tighten.
What's included
- 1Extension
- 1Locking swivel
Not included: A central inlet or end caps. This add-on is not a complete spray bar.
Dimensions & details
- Reach added
- 5.91 in 150 mm assembled
- Length before assembly
- About 6.30 in 160 mm
- Tube outside diameter
- 1.02 in 26 mm
- Internal bore
- 0.87 in 22 mm
- Spray holes
- 8 in a single row 5.5 mm, 17 mm apart
- Material
- Black PETG visible layer lines are normal
Compatibility
What it fits
Fits Aqua Stiles expandable spray bar kits only, wet-tested in the FX2, FX4 and FX6 kit configurations. It does not connect to an original Fluval spray bar or any other brand. Adding length moves the outer end further from the inlet, so check your tank space before ordering.
Before use, safety & care
Thoroughly rinse every part in clean, dechlorinated water before placing it in your aquarium. Do not use soap or household detergents. Inspect for damage, sharp edges or loose material. Install securely and support the bar so its weight does not strain the outlet connection. Keep the assembly inside the aquarium.
Buyers are responsible for checking suitability for their equipment, water conditions and livestock. Check jet direction, openings and clearances, especially around fry and small shrimp. Monitor livestock and water flow after installation and adjustment, and remove the product if any concern arises.
Inspect and clean the holes, passages and joints regularly. Compatibility testing does not guarantee suitability for every aquarium or species.
Questions
Will it fit my original Fluval spray bar?
No. It connects only to the Aqua Stiles expandable spray bar, not to an original Fluval spray bar or any other brand.
Does it include an inlet or end caps?
No. It is one extension and one locking swivel. For a complete spray bar, choose the Expandable Spray Bar in FX2, FX4 or FX6.
Which side of the inlet does it go on?
Either. Matching extensions can be arranged on either side of the inlet.
